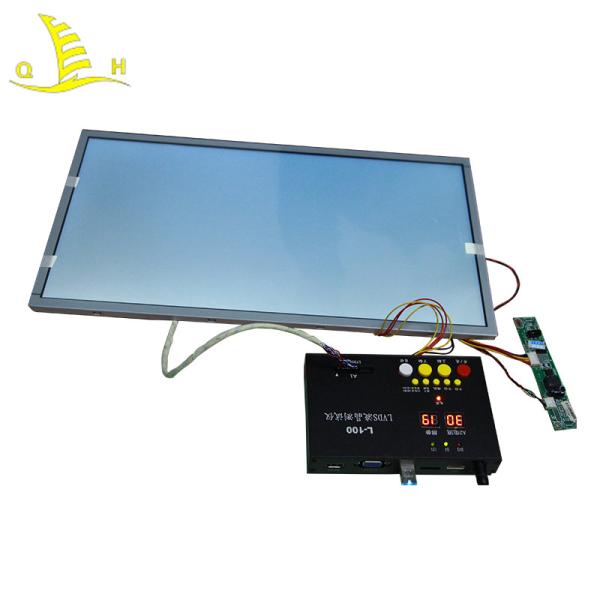

Customize Tft Projected Capacitive Touch Panel LCD Screen Module

Brand Name : Qihang

Model Number : JXL-MT185WHM-N10

Certification : ROHS/CE

Place of Origin : Shenzhen, China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal

Supply Ability : 100,000 Per Month

Delivery Time : 15-18 Days

Packaging Details : Tray , Standard carton

Name : Customize Tft Projected Capacitive Touch Panel LCD Screen Module

Interface : LVDS

Resolution : 1366*768 Dots

Outside Dimensions : 430.4*254.6*10.9(mm)

Active Area : 409.8*230.4(mm)

Response time : 5 ms

Brightness : 250cd/M2

Pixel arrangement : RGB

Display mode : White

Contrast Ratio : 1000:1

Contact Now

Customize Tft Projected Capacitive Touch Panel LCD Screen Module

Description Of TFT LCD Screen Module

MT185WHM-N10 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and a backlight system. The screen format is intended to support the WUXGA (1366(H) x 768(V)) screen and 1.07B colors. All input signals are 2-channel LVDS interface compatible.

Quick Details

Name Customize Tft Projected Capacitive Touch Panel LCD Screen Module
Panel Size
18.5 inch
Viewing Ratio
16: 9
Maximum Resolution
1366*768 dots
viewing Angle
176 (H) 170(V)
Contrast Ratio
1000:1
Response time
5ms
Maximum brightness
250cd/M2
Interface
VGA, DVI high defination, speaker optional
VESA
100*100mm
Consumption
<40W
Power Supply
AC 100~240V, DC 12V /5A
Accessory
VGA cable, Power adaptor, Power cable, User's Manual

TFT LCD Display Feature:

Supports development boards such as Mega2560 for plug-in use without wiring

1366X768 resolution, clear display, support for touch function

Support 16-bit RGB 65K color display, display rich colors

8-bit parallel bus, faster than serial SPI refresh

On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage

Easy to expand the experiment with SD card slot

Provides an library with a rich sample program

Military-grade process standards, long-term stable work

Provide underlying driver technical support

FAQ

Q: May I have your company profile?
A: of course! Our company was established in 2012. Which is one of the earliest LCD module manufacturers in China.,At present, we have thousands of standard LCD modules for customer choosing. And special customization is welcome.


Q: I want the LCD module display 8 digits and the outline size is 35mm*70mm………?
A: No problem. Firstly ,pls send us your drawing paper or samples; we will introduce the suitable one if it is standard products. Or we can modify based on one of it.


Q: This LCD module is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
A: For the segment type LCD module, if you need modify the outline size or display content, A new LCD glass.mould is need. We will inform you of the mould charge after comfirming when payment , we will start the drawing paper for your checking.


Q: This LCD module backlight is yellow-green, but I want blue backlight.
A: no problem, we can change for you.

Q: What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T, Western Union.

Q: I haven't done business with you guys before,how can i trust your company?
A: Our company has been in Alibaba.com for 14,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what's more,we've got quite a lot authority certificates,for example,CE, ROHS, FCC, Alibaba On site checkcertificate.

Q: what's the shipment terms and delivery time of your company?
A: Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.As for detailed cost, it depends on your final order.

Q: I would like to ask you if it's possible to have my logo on the product.
A: Yes, Our one-stop service can be customized according to customer requirements ODM/OEM development design production and processing.


Product drawing


Customize Tft Projected Capacitive Touch Panel LCD Screen Module


Product Tags:

Tft Projected Capacitive Touch Panel Module



18.5 Inch Capacitive Touch Panel Module



250cd/M2 LCD Tft Display
